Our products

Our expertise lies in aseptic carton filling machines, designed to accommodate a variety of products. We focus on providing high-quality solutions to ensure efficiency and reliability in meeting your packaging needs. We believe we can enhance your production through innovative technology tailored to different applications.

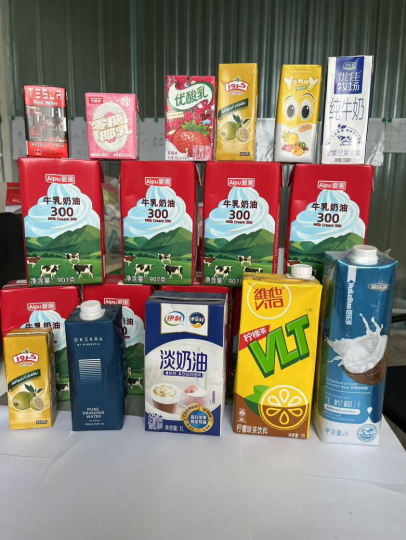

YOUTUBE Finished Product Display》》

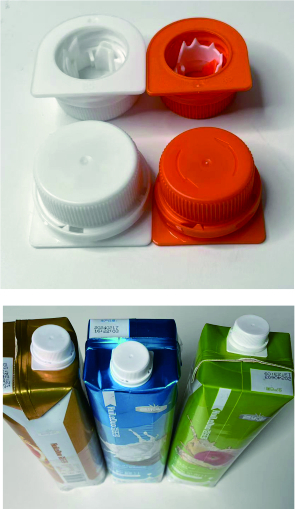

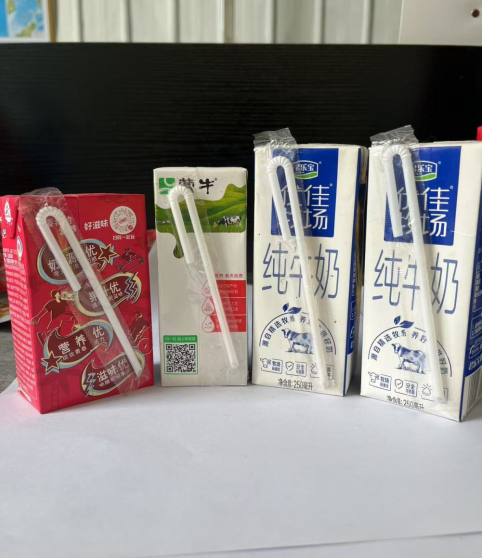

Aseptic Carton Sealing Strength Test 》》

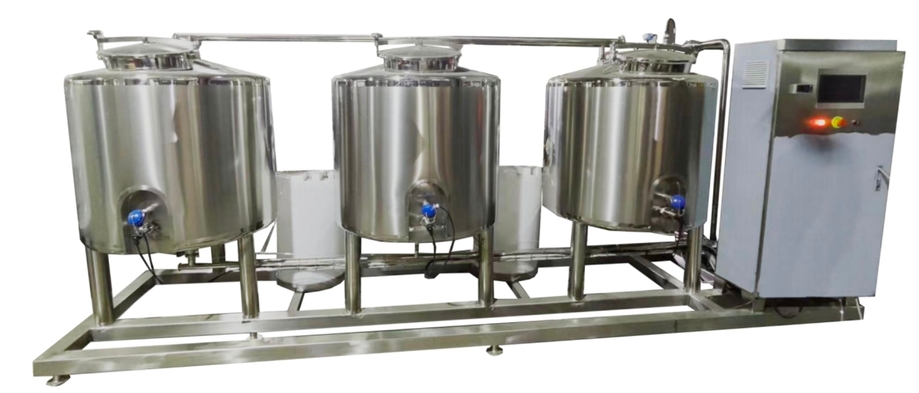

果汁饮料生产工艺实验室

Fruit Juice Beverage Production Process Laboratory


为您提供生产工艺、生产流程演示。 果汁饮料配方调配添加剂供应等等，可根据客户样品调配客户所需的口味，直到您满意为止

We provide demonstrations of production processes and procedures. Fruit juice beverage formulations and additive supplies can be customized according to customer samples to achieve the taste you want, until you are satisfied.

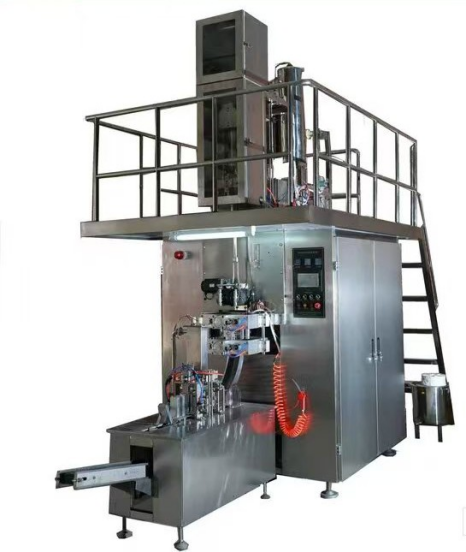

本机为高效杀菌型，其杀菌工艺为无菌空气--臭氧杀菌--双氧水--紫外线等对无菌仓和包装材料进行多重杀菌后进行包装--物料填充--预成型--整形--成品后送入输送带进行下一道工序的工作。


This machine is a high-efficiency sterilization type. Its sterilization process involves multiple steps: sterile air → ozone sterilization → hydrogen peroxide → ultraviolet light, which are used to sterilize the sterile chamber and packaging materials. After sterilization, it proceeds with packaging, material filling, pre-forming, shaping, and the finished product is then sent onto the conveyor for the next process.

>> 本机适用于含牛奶、糖、纯果汁的物料。

>> 可以生产 125ml 200ml 250ml 330ml 500ml 1000ml等等可根据用户需求定制。

>> This machine is suitable for materials containing milk, sugar, and pure fruit juice.

>> Can produce 125ml, 200ml, 250ml, 330ml, 500ml, 1000ml, etc. Can be customized according to user requirements.

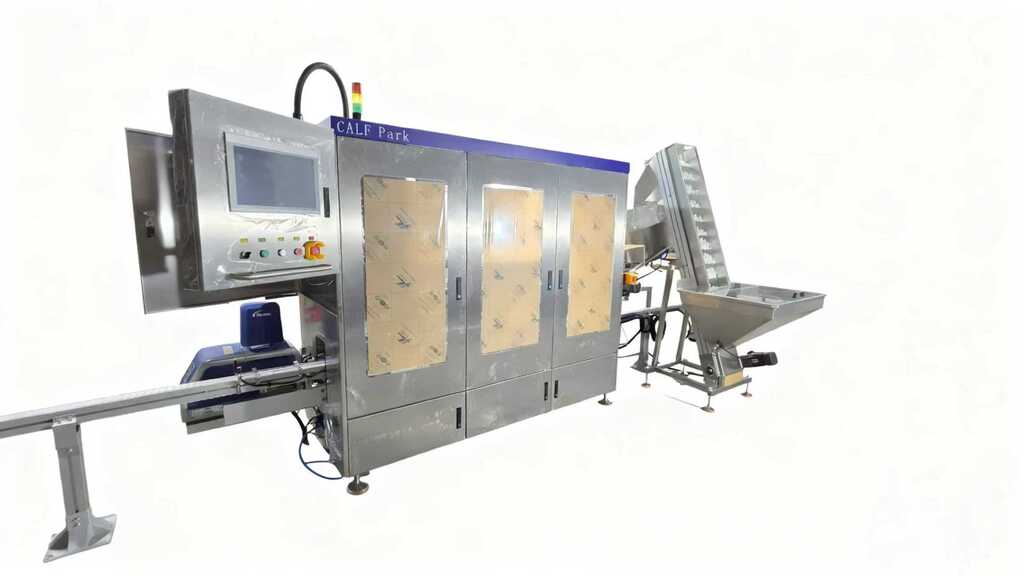

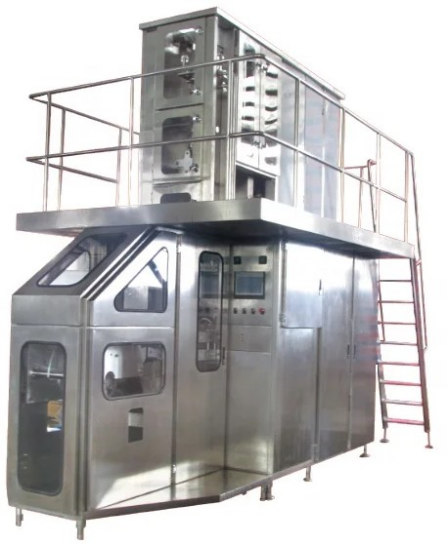

无菌纸盒灌装机 普通杀菌型

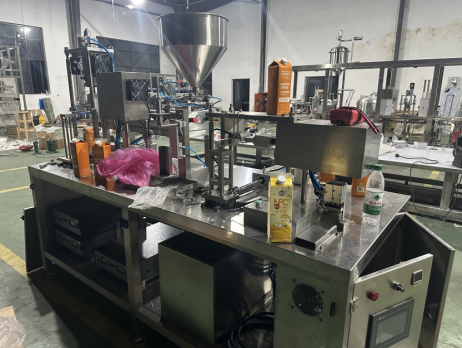

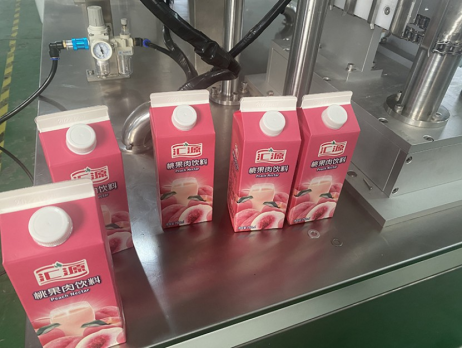

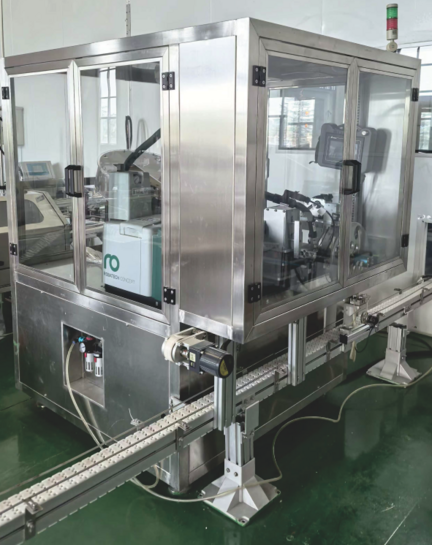

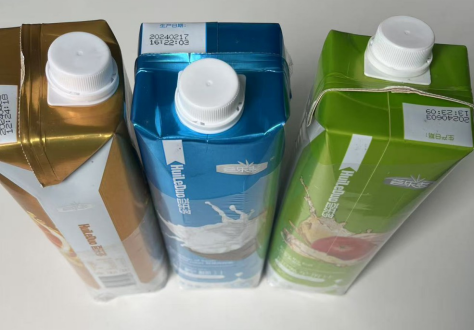

Aseptic Carton Filling Machine

Regular disinfectant type

本机为普通杀菌型，其杀菌工艺为无菌空气-双氧水对无菌仓和包装材料进行杀菌后进行包装——物料填充——预成型——整形——成品后送入输送带进行下一道工序的工作。

This machine is a standard sterilization type. Its sterilization process involves using sterile air and hydrogen peroxide to sterilize the sterile chamber and packaging materials, followed by packaging, material filling, preforming, shaping, and then the finished product is sent onto the conveyor belt for the next process.



>> 本机适用于含糖量小于7%的物料 。

     This machine is suitable for materials with a sugar content of less than 7%.

>> 可以生产 125ml 200ml 250ml 330ml 500ml 1000ml等等,可根据用户需求定制.

Can produce 125ml, 200ml, 250ml, 330ml, 500ml, 1000ml, etc. Can be customized according to user requirements.


YOUTUBE machine internal detail display 》》

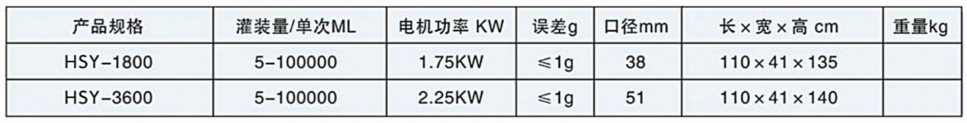

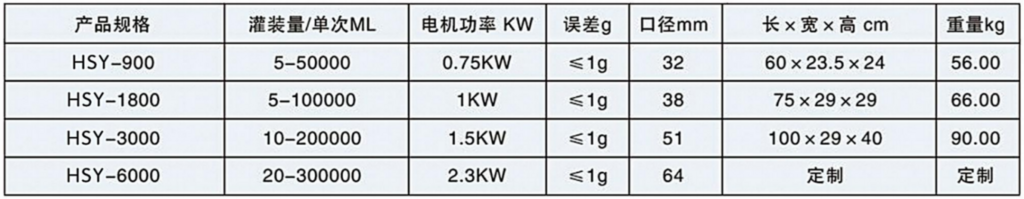

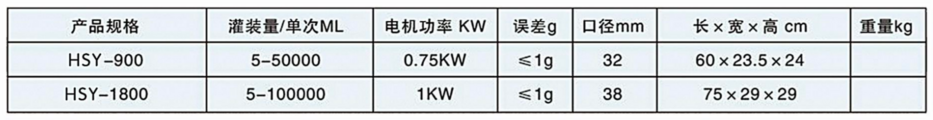

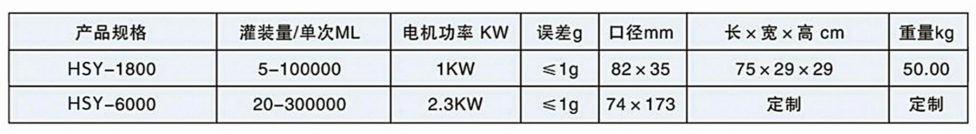

HSY系列半自动灌装机

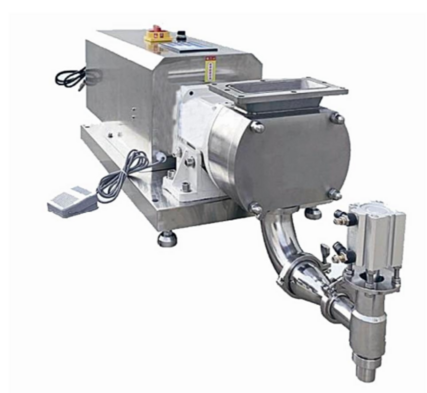

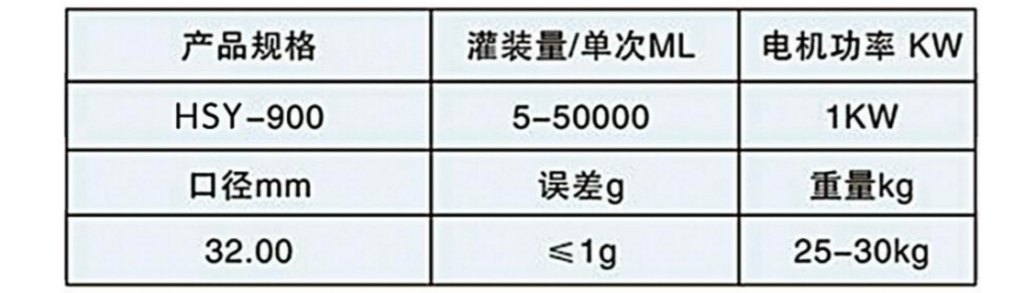

HSY Series Semi-Automatic Filling Machine

·电源:220V/50HZ

·卡盘:50.5mm/64mm/77.5mm

·灌装阀:活塞式防滴漏

·外接启动: 脚踏开关，光感开关，接近开关

·驱动控制:伺服电机+PLC脉冲控制

·配用气量：<0.1米/分钟

·本机器为电动仅防滴漏阀门消耗气量

·适用范围:芝麻酱，食用油，蜂蜜花生 酱、洗衣液、沙拉酱等

·该机是针对液体、膏体物料灌装而设计的半自动灌装机，定量精准，灌装范围广

Power: 220V/50HZ
Chuck: 50.5mm/64mm/77.5mm
Filling valve: Piston-type, anti-dripExternal start: Foot switch, photoelectric switch, proximity
switchDrive control: Servo motor, PLC pulse control
Air consumption: <0.1m³/min
This machine is electric, and the anti-drip valve only consumes a small amount of air
Applicable range: Sesame paste,
edible oil, honey, peanut butter, laundry detergent, salad dressing, etc.
This machine is a semi-automatic filling machine designed for liquid
and paste materials, with precise quantitative filling and a wide filling range.

HSY半自动方口灌装机

HSY Semi-Automatic Square Mouth Filling Machine

·电源:220V/50HZ

·卡盘:50.5mm/77.5mm

·灌装阀:活塞式

·防滴漏外接启动:脚踏开关，光感开关，接近开关

·驱动控制:伺服电机+PLC脉冲控制

·配用气量:<0,1m'/min

·本机器为电动仅防滴漏阀门消耗气量

·适用范围:芋泥,肉馅,豆沙馅、果肉果酱、树脂、麦芽糖该机是针对膏体，流动性较差的物料灌装而设计的半自动装机，进料流畅，定量精准

· Power: 220V/50Hz
· Chuck: 50.5mm/77.5mm
· Filling valve: Piston type
· Anti-drip external start: Foot switch, photoelectric switch, proximity switch
· Drive control: Servo motor PLC pulse control
· Required air volume: <0.1 m³/min
· This machine is electric, only the anti-drip valve consumes air
· Applicable range: Taro paste, minced meat, red bean paste, fruit pulp, jam, resin, maltose. This machine is a
semi-automatic filler designed for pasty materials with poor flowability, ensuring smooth feeding and accurate portioning.

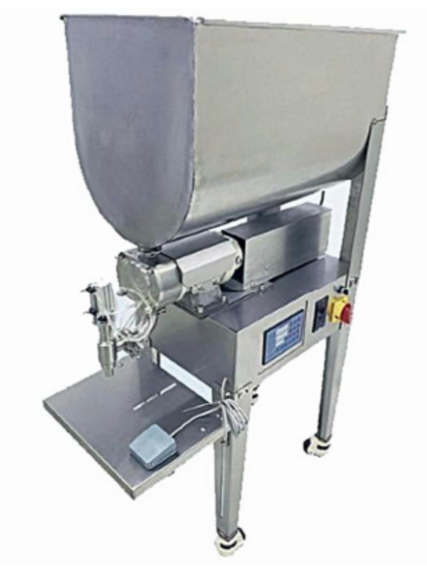

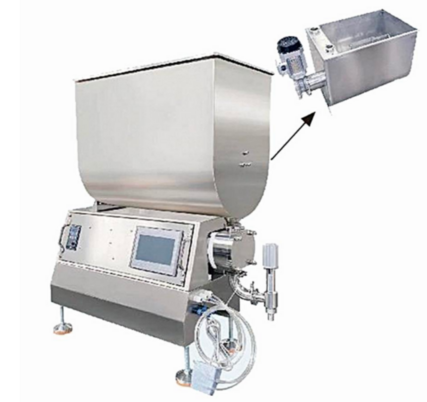

半自动卧式搅拌灌装机

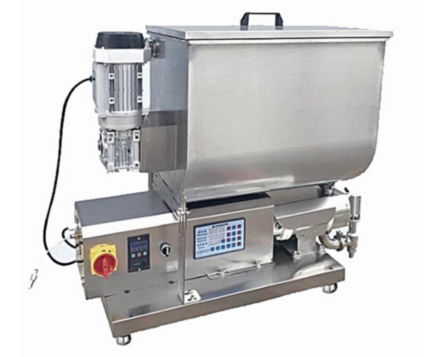

Semi-automatic horizontal mixing and filling machine

·电源:220V/50HZ           ·卡:50.5mm/64mm/77.5mm

·灌装阀:活塞式防滴漏    ·外接启动:脚踏开关，接近开关，光感开关

·驱动控制:同胶电机+PLC脉冲控制

·搅拌料斗驱动装置:蜗杆涡轮调速电机750W

·配用气量:<0.1m'/min本机器为电动仅防滴漏阀门消耗气量

·该机是针对酱料，含沉淀颗粒物料灌装而设计的半自动装机搅拌出料均匀，装误差小

·适用范国:辣椒酱，火锅底料，油泼辣子等各种颗粒酱料料斗可选择，加热，保温加热料斗

· Power: 220V/50Hz                                · Cap: 50.5mm/64mm/77.5mm
· Filling valve: piston-type drip-proof
· External start: foot switch, proximity switch,   photoelectric switch
· Drive control: same glue motor, PLC pulse control
· Agitator hopper drive device: worm gear motor with speed regulation, 750W
· Air consumption: <0.1 m³/min (this machine is electric, only the drip-proof valve consumes air)
· This machine is a semi-automatic model designed for filling sauces containing suspended particles, ensuring uniform mixing and minimal filling error· Applicable range: chili sauce, hot pot base, oil chili sauce, and various granular saucesHoppers are optional, with heating and insulated heating options

HSY卧式搅拌一体机

HSY Horizontal Mixer Integrated Machine

·电源:220V/50HZ            ·卡盘:50.5mm/64mm

·灌装阀:活塞式防滴涌外接启动:脚踏开关，接近开关，光感开关

·驱动控制:同股电机+PLC脉冲控制

·搅拌料斗驱动装置:蜗杆涡轮调速电机750W

·配用气量:<0.1m//min本机器为电动仅防滴漏阀门消耗气量针对酱料，含沉淀颗粒物料灌装而设计的半自动灌装机搅拌出料均匀,装误差小

·可自由移动结构紧凑，不占用空间自带工作台

·适用范国:辣椒酱，火锅底料，油泼辣子等各种颗粒酱料

·料斗可选择，加热，保温加热料斗

· Power supply: 220V/50HZ               ·Chuck: 50.5mm/64mm
· Filling valve: piston type with anti-drip function; external start: foot switch, proximity switch, photoelectric switch
· Drive control: synchronous motor with PLC pulse control· Agitation hopper drive device: worm gear and turbine speed-regulating motor 750W
· Air consumption: <0.1 m³/min. This machine is electric with only anti-drip valves. Air consumption is designed for semi-automatic filling of sauces containing sediment or particulate materials. Ensures uniform agitation and minimal filling error.
· Freely movable, compact structure that does not take up space; comes with workbench
· Applicable range: chili sauce, hot pot base, chili oil with spices, and various other granular sauces
· Optional hopper: heating, heat-preserving heated hopper

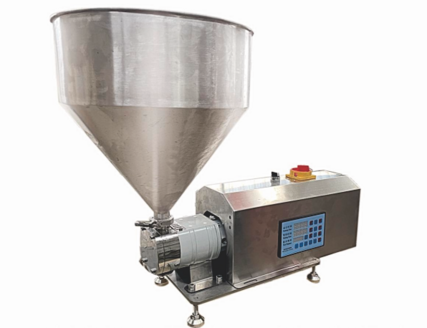

手持半自动灌装机

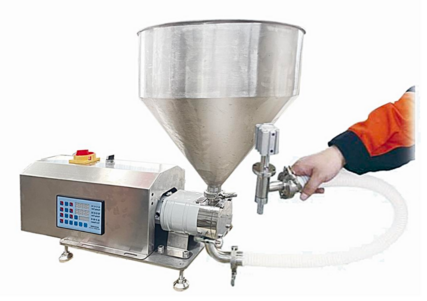

Handheld semi-automatic filling machine

·该机针对小容量灌装，烘焙行业注浆使用

·适用范围:蛋糕液，奶油

·多种灌装模式: 自动/手动/点动/脚踏

·This machine is designed for small-volume filling and is
used for injecting in the baking industry
·Applicable scope: cake batter, cream
·Multiple filling modes: automatic/manual/jog/foot pedal

新款半自动卧式搅拌机灌装机

New Semi-Automatic Horizontal Mixer Filler

·适用于黄豆酱，珍珠奶茶火锅酱料

·该机是针对含杂质液体设计生产可灌装含杂质颗粒物料

· Suitable for soybean paste and pearl milk tea hot pot sauces
· This machine is designed to fill liquids containing impurities and particulate materials
